Straight answer
Bathroom electrical work in Boston covers the exhaust fan, the vanity light, a GFCI-protected receptacle near the sink and sometimes a heated floor circuit. The fan has to exhaust outdoors through a duct, not into the attic or a wall cavity, and every bathroom receptacle needs GFCI protection. Most of it can be done in an existing bathroom, not only during a remodel.
Why bathrooms fog, peel and trip breakers
A lot of bathrooms in older Boston houses have no fan at all, only a window that nobody opens in February. Others have a fan that was mounted in the ceiling and left blowing into the attic, where the moisture soaks the insulation and drips back through the plaster. Peeling ceiling paint and mildew in the corners usually trace back to air that never left the house.
The wiring side has its own rules. Bathroom receptacles get GFCI protection and a 20 amp circuit, fans and lights over a tub or shower must be listed for that spot, and a heated floor needs its own protection, usually built into the thermostat. We size the fan to the room, plan the duct path first, then wire it to a switch, a timer or a humidity sensor.
Fans, floor heat and vanity wiring
Exhaust fan installation

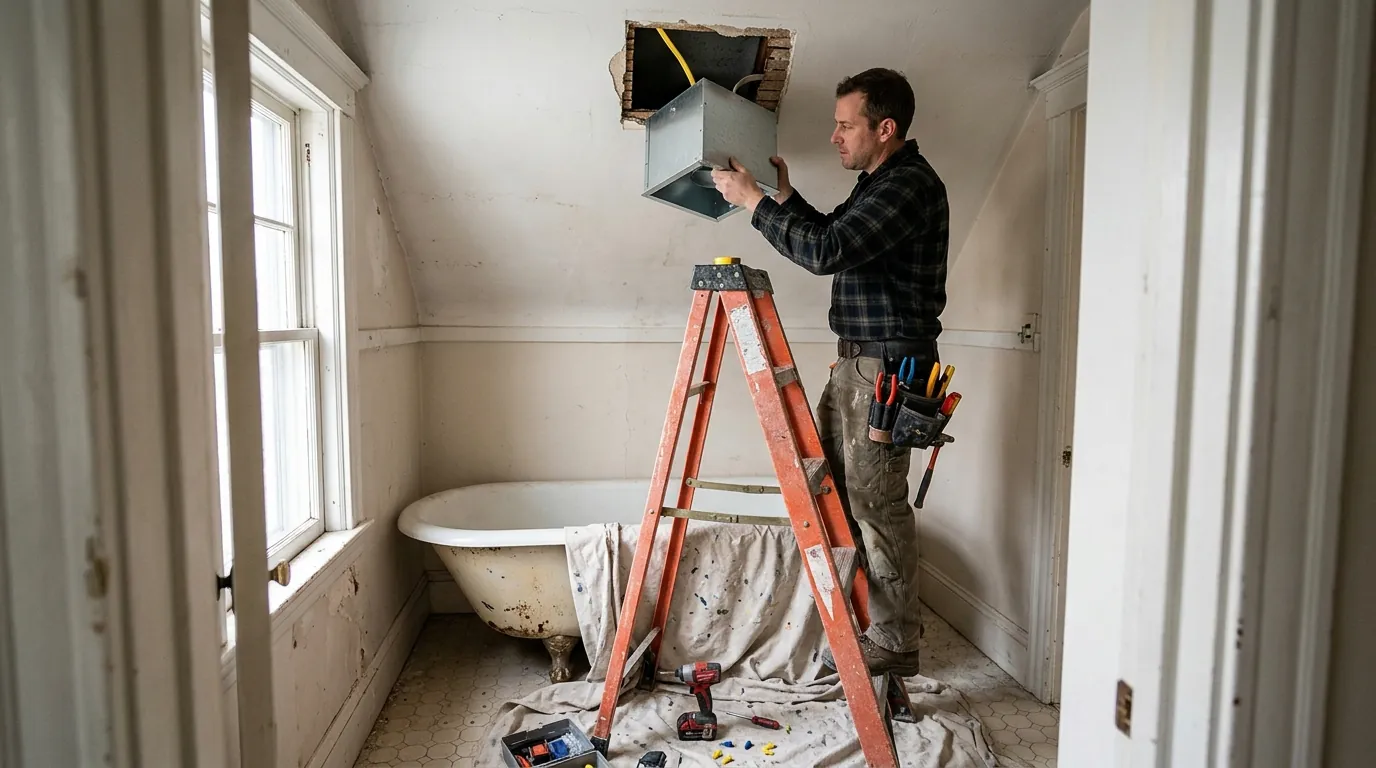

The fan is only as good as its duct. We pick a fan sized for the room, then run rigid or insulated duct to a roof cap, a wall cap or a soffit vent with a damper, keeping the run short and sloped so condensation does not drain back into the housing. A fan installed over a tub or shower must be listed for that location, and some models call for GFCI protection. Quiet fans cost more and need a bit more ceiling depth, but they get used, which a loud one often does not. A humidity sensor or timer switch keeps the fan running after the shower ends.
Heated floor circuits

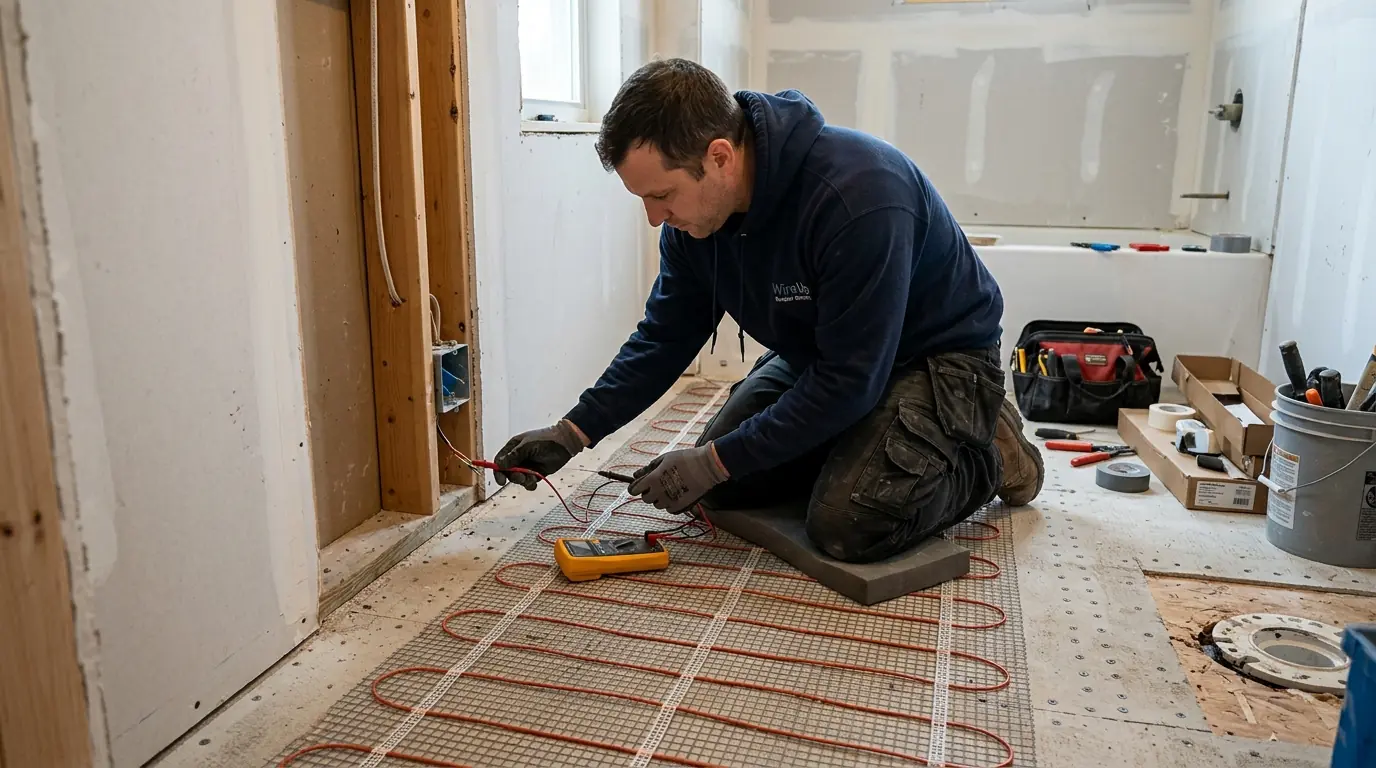

Electric radiant mats go down before the tile, so the wiring has to be planned while the floor is open. The mat connects to a thermostat with built-in ground fault protection, which is required for floor heating in a bathroom. Small mats can share a circuit with lighting if the load allows, while larger floors or long runs of cable get a dedicated circuit back to the panel. We test the mat resistance before tile goes down and again after, because a nicked cable under set tile is the one repair nobody wants. The thermostat goes outside the shower zone at a height you can reach.
Vanity lighting and GFCI
The receptacle near the sink must be within reach of the basin and GFCI protected, and we usually put it on a 20 amp circuit that serves only bathroom receptacles, so a hair dryer does not trip a bedroom circuit. Vanity lights above a mirror need a box in the right spot for the fixture you pick, so we ask for the fixture spec sheet before rough-in. Sconces on each side of the mirror light a face better than one bar overhead, but they take two boxes and more careful placement around medicine cabinets. Fixtures inside the tub or shower zone must carry a damp or wet location rating.
Fan venting into the attic? Call and we will duct it outside.
Call (617) 843-6591What drives the cost of bathroom electrical work
Bathroom electrical work is priced after we see the ceiling, the attic or floor above, and the panel. These are the main drivers.
- Duct route. A short run to a roof or wall cap is quick; a fan in a first floor bath under a finished bedroom is not.
- Fan choice. Quiet, humidity-sensing and light-combination fans cost more than a basic unit.
- New circuit or not. A dedicated 20 amp bathroom circuit adds a run back to the panel.
- Floor heat size. Larger mats and long cable runs may need their own circuit.
- Wall and ceiling type. Plaster and tile take more care to fish through than open framing.
- Exterior work. Cutting a roof or siding vent cap adds flashing and sealing time.
Bathroom fans in old Massachusetts houses
Bathroom fans almost always vent through the attic, and that is exactly where old knob and tube runs tend to survive. If those wires are still energized, the Mass Save weatherization program holds off on new insulation until an electrician has handled them. So a fan job can quietly stall an energy upgrade you already signed for. When we route the duct and the fan circuit, we also look over the attic wiring, tell you which runs are still live, and quote retiring them on the same visit so the insulation contractor can come back on schedule.
What a bathroom electrical job covers
- Fan sized to the room and duct length
- Duct run to an outdoor cap with a backdraft damper
- Switch, timer or humidity control for the fan
- GFCI-protected receptacle near the basin
- Vanity light boxes set for your fixture
- Heated floor thermostat and circuit where planned
- Resistance test of floor heat before and after tile
- Patch-ready openings and a labeled panel directory
How a bathroom fan and wiring job runs
Look above and below
We check the attic or floor above for a duct path and the panel for a circuit.
Size the fan
The fan is matched to the room and the duct length, not just the old hole.
Run duct and wire
Duct goes to an outdoor cap with a damper, and cable runs to the switch location.
Set devices and fixtures
Fan, vanity lights, GFCI receptacle and floor thermostat are installed and connected.
Test and show you
We confirm airflow at the cap, trip each GFCI and show you the timer or humidity setting.
What you can check before you call
Safe for a homeowner
- Cleaning the fan grille and checking that it lifts tissue paper
- Pressing the GFCI test and reset buttons monthly
- Running the fan for 20 minutes after every shower
- Checking the attic for a disconnected or crushed duct
Leave to an electrician
- Installing a fan over a tub or shower
- Adding a receptacle or a new circuit
- Connecting a heated floor mat to the thermostat
- Cutting a new vent through the roof or siding
A swapped fan that reuses an old duct to nowhere will still leave the moisture in the house, so look at where the air goes before buying a new unit.
Bathroom fan and wiring questions
No. The exhaust has to go outdoors through a duct to a roof, wall or soffit cap. Venting into an attic puts the moisture right into the insulation and framing, which is how mold and ceiling stains start.
Usually not for the fan alone, since most draw very little. The receptacle is a different matter: bathroom receptacles belong on a 20 amp circuit, and we often add one when an old bath shares a bedroom circuit.
Yes. Most fan installs happen in finished bathrooms. We work from the attic or floor above when we can, and keep ceiling cuts to the fan opening.
Small mats can often share a circuit if the load works out. Larger floors usually get a dedicated circuit. Either way the thermostat provides the ground fault protection the code requires.
It may be doing its job, catching moisture in a device or a fan on the same circuit. It can also be a worn GFCI. We test the load side to find out which.
A timer or humidity sensor is a good idea. Most moisture is still in the air after the shower ends, and a fan that shuts off with the light leaves it behind.
