Straight answer
Hot tub and spa wiring in Boston usually means a dedicated 240 volt circuit from the panel to a GFCI disconnect near the tub, then a short run into the spa pack. The code requires the disconnect within sight of the tub and at least five feet from its edge, so you never reach it from the water.
What a hot tub needs from your electrical system
Most hot tubs arrive with a spec sheet that lists the circuit size and whether they need a neutral. A typical 240 volt tub runs on a 40 to 60 amp circuit, and larger models more. A few small tubs plug into a 120 volt GFCI outlet, but they heat slowly and cannot run heater and jets together in cold weather, which is a real limit through a Boston winter.
The wiring path is the bulk of the job. From the panel it either runs underground in conduit to the tub or along the house to a deck. Water, bare feet and electricity are a bad mix, so ground fault protection, bonding and disconnect placement are where the code is strictest. Those details decide whether the tub passes its inspection.
The disconnect, the run and the bigger swim spas
GFCI spa disconnects

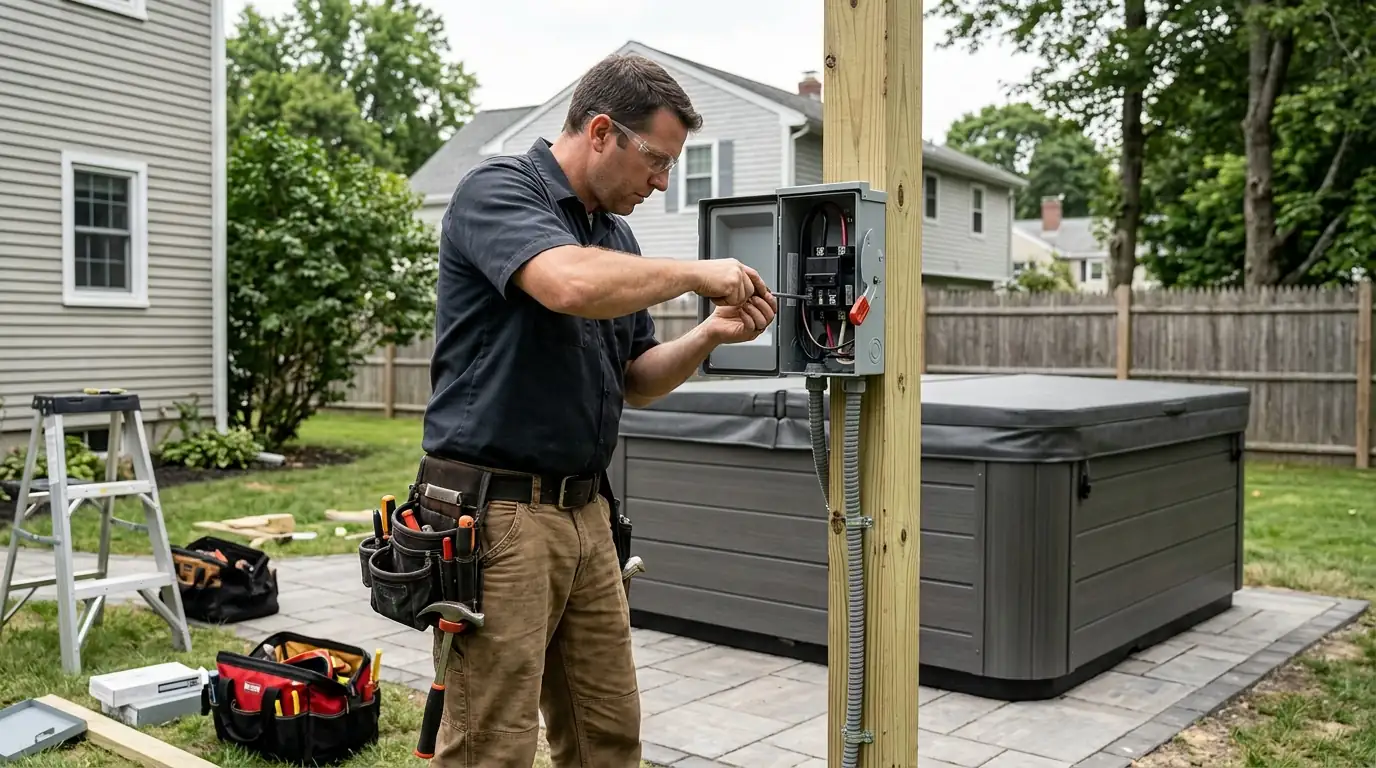

The spa disconnect is an outdoor box with a GFCI breaker inside. It lets you or a technician cut power to the tub, and it trips if current leaks to ground, such as through a person in the water. The disconnect has to be within sight of the tub and at least five feet away horizontally, so nobody can reach it while sitting in it. We mount it on a post or the house wall, out of reach of the tub and clear of downspouts. Some spa packs have their own GFCI too, and the two can nuisance trip against each other, so we follow the manufacturer wiring diagram.
Feeder runs to the yard

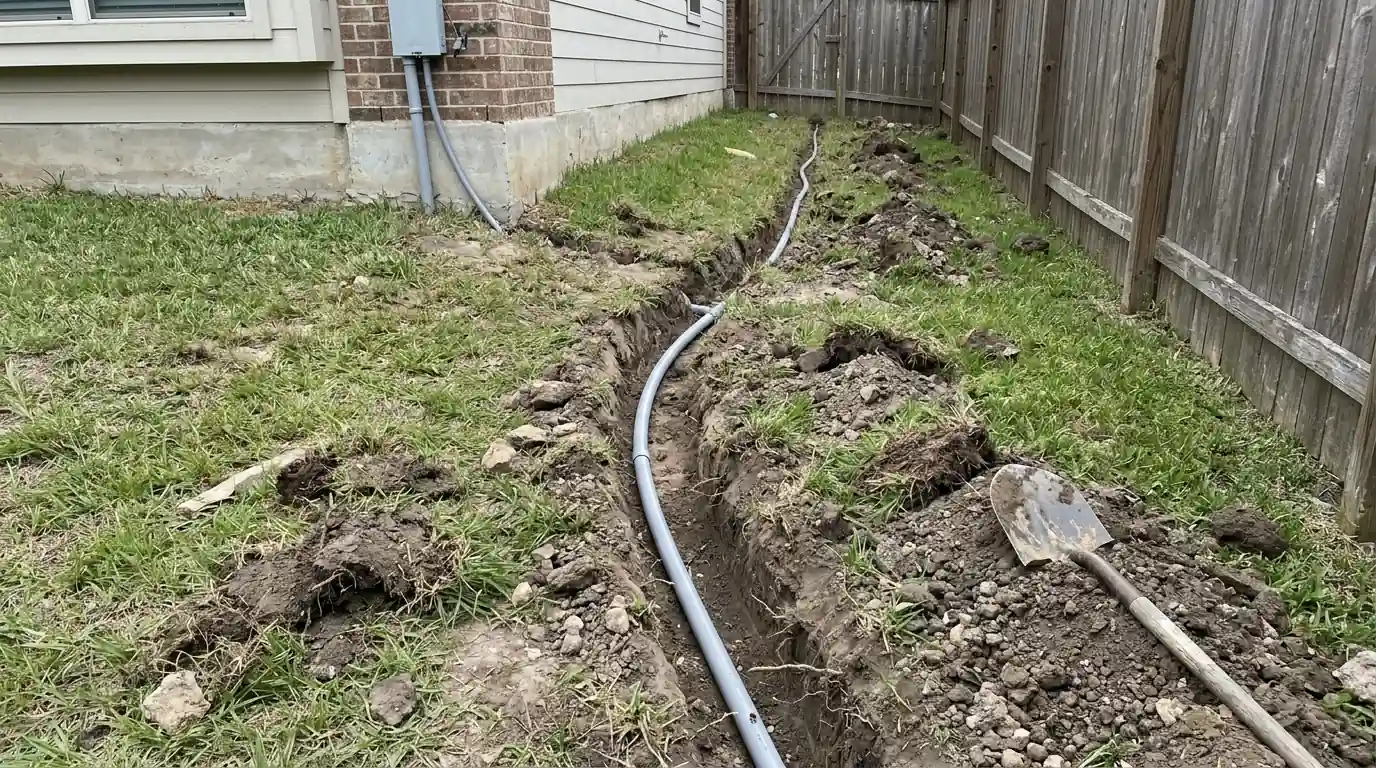

Getting power to a tub in the middle of the yard means a trench. We run the wire in conduit at the burial depth the code sets for that wiring method, with a separate insulated ground conductor all the way to the spa. A deck tub can often be fed along the house and under the deck framing instead, which avoids digging. On long runs we size the wire up to keep voltage drop down, since a heater starved of voltage heats slowly. If the panel has no room for a large two-pole breaker, a subpanel or a panel change may be part of the job.
Swim spa circuits
A swim spa is a larger tub with a current-generating pump for swimming in place. Many draw more than a standard hot tub and some need two separate circuits, one for the heater and one for the pumps. That pushes the total load high enough that an older 100 amp service may not carry it alongside heat and cooking. We read the swim spa spec and run a load calculation before you order. The disconnect setup is the same in principle, a GFCI disconnect within sight and set back from the water, but the wire and breakers are heavier and the trench is often longer.
Hot tub on order? Call and we will have the circuit ready when it lands.
Call (617) 843-6591What decides the cost of hot tub wiring
Hot tub wiring is priced mostly on distance and circuit size. These factors move it.
- Distance from the panel. A deck tub near the panel is a short run. A tub at the back of the yard is a long one.
- Trenching. Digging through lawn, stone or pavers adds labor and surface repair.
- Circuit size. Larger tubs and swim spas need heavier wire and bigger breakers.
- Panel room. A full panel needs a subpanel or a replacement before the spa breaker fits.
- Two-circuit swim spas. A second circuit doubles part of the wiring and the disconnect hardware.
Low yards, frost and outdoor wiring
Spa wiring lives outdoors, and outdoors near the coast means planning for water that does not come from the tub. Coastal storms have pushed enough flooding into parts of Quincy that people there were evacuated. On a low yard, we set the disconnect on its post at the highest spot that still keeps it within sight of the spa, seal the conduit where it passes into the house, and pick a route that avoids the part of the lot that floods. We also bury the feed below frost and keep the GFCI disconnect where snow can be cleared away from it.
What spa wiring includes
- Load check and panel space for a two-pole breaker
- Dedicated 240 volt circuit sized to the spa spec
- GFCI disconnect mounted within sight and set back from the tub
- Conduit run underground or along the house
- Insulated ground conductor to the spa pack
- Permit filed on work that needs one
- GFCI test and heater draw check at start-up
From spec sheet to first heat-up
Read the spa spec
Circuit size, neutral needs and the wiring diagram from the manufacturer.
Check the panel
Space for a large two-pole breaker and room in the service for the load.
Plan the disconnect and route
Disconnect location, trench or deck route, agreed with you.
Wire the circuit and disconnect
Conduit and wire run, GFCI disconnect mounted, ground run to the spa.
Power up and test
Once the tub is filled, we energize it, test the GFCI and check the heater draw.
What you prep and what we wire
Safe for a homeowner
- Have the pad or deck ready and level before the tub arrives
- Mark irrigation lines and buried cables in the trench path
- Fill the tub before the electrician comes to power it
- Press the GFCI test button monthly
Leave to an electrician
- Running the circuit or setting the disconnect
- Opening the spa pack or the disconnect box
- Anything that needs a panel breaker added
- Chasing a GFCI that trips repeatedly
Never run a full-size tub on an extension cord or a regular outdoor outlet. It overheats the cord and bypasses the protection the tub needs.
Hot tub wiring questions
Only if it is a small 120 volt plug-in tub on a dedicated GFCI outlet. Most full-size tubs need a hardwired 240 volt circuit, and the spec sheet that ships with the tub tells you which kind you have.
So nobody can reach it from inside the tub. It still has to be within sight so the person servicing the spa can see it.
The trench, conduit and disconnect, yes, so the delivery crew can set the tub on a ready pad. We make the final connection and test after the tub is set and filled.
Sometimes. It can also be a failing heater, pump or a wet connection in the spa pack. We test the circuit and the tub side to find which before replacing anything.
New outdoor circuits for a spa generally need an electrical permit and inspection. We file on work that needs one and schedule the inspection so it does not hold up your first soak.
